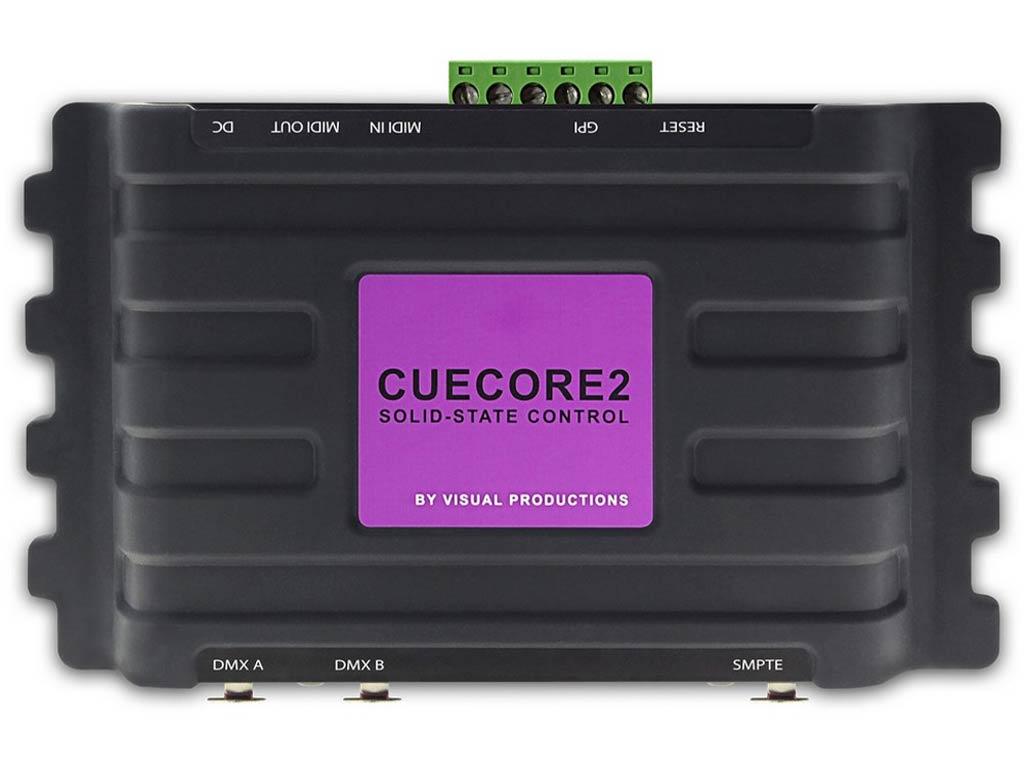

Visual Productions CueCore 2

Visual Productions CueCore2: multi-protocol architectural lighting controller

The CueCore2 is a compact form-factor lighting controller for (semi-)permanent installations and architectural lighting. Designed for non-stop operation, the CueCore2 has no moving parts; the unit is completely solid-state and achieves a remarkable level of reliability that allow lighting engineers to ‘fit and forget’.

Although it is bundled with various supporting software tools, once programmed, the CueCore2 can operate completely stand-alone. It can playback lighting shows, static scenes and dynamic effects through its two DMX-512 universes. The unit can be programmed to respond to a variety of incoming protocols or scheduled to time or day.

SPECIFICATIONS Visual Productions CueCore2

• 2 x DMX-512 opto-isolated (in or out)
• Art-Net & sACN (in and out)
• KiNet (out)
• MIDI, MSC, MMC
• OSC, UDP, TCP triggers (in and out)
• GPI port with 4 contact-closures or 0-10V inputs
• On-board lighting controller with 6 independent playbacks
• DMX, Art-Net and sACN show recorder
• Scheduling with Real-Time clock, weekdays and sunrise/sunset
• NTP time synchronisation
• SMPTE, MTC and Art-Net timecode slave
• Show Control function (connect any input to any output)
• Master/slave protocol for synchronising multiple units
• Compatible with VisualTouch (free of charge)
• PoE
• Desktop or DIN Rail mounted
• Kensington lock
